 THERMOSONIC/ULTRASONIC WEDGE BONDERS

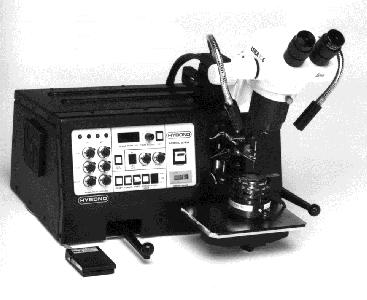

 MODEL 572A

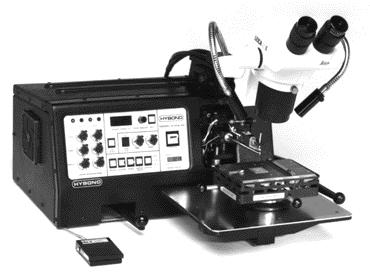

MODEL 572A-40



HYBOND Models 572A and 572A-40 wedge bonders set the industry standard for ease of operation and maintenance.
Front panel operator controls include force, bond time, ultrasonic energy, tail length, and stage heat. The 4:1 X-Y
manipulator stage and Z axis bond motion are conveniently located to reduce operator fatigue. Precision machined mechanical components with sealed ball bearings at major points are durable and trouble free. Modular electronics facilitate quick and cost effective maintenance.

HYBOND's exclusive Soft Touch TM force ramping system bonds effectively even to sensitive materials. Superior wire
control is provided by a motorized feed and clamping system which features front panel operator adjustment of tail length,
and the amount of "pull back" required to break the final bond in relation to wire elasticity.



MODEL 572A FEATURES

  • 1-2-2 stitch capability is standard.
  • Horizontal reach of 3.5 inches.
  • Deep vertical access of 0.59 inch.
  • 6 x 8.5 (15.2 x 21.6 cm) inch work plate supports various heated work stages.
  • Bench space required: 20 x 20 in.
    (50.8 x 50.8 cm) .
  • Unit weight: 55 lbs. (24.9 kg).

MODEL 572A-40 FEATURES

  • 1-1-2, 1-2-2, 1-2-1, stitch capability is standard.
  • Long horizontal reach of 6.5 inches.
  • Deep vertical access of 0.53 inch.
  • 10 x 12 inch work plate supports various heated work stages.
  • Bench spc. req: 20 x 25 in. (50.8 x 63.5 cm)
  • Unit weight: 70 lbs. (31.8 kg).



 GENERAL FEATURES



·  HYBOND Soft TouchTM energy system.

·  Bonds gold or aluminum wire from 0.5 mil to 3.0 mil diameter, and gold or aluminum ribbon up to 1.0 mil by 20 mil.

·  Front panel ultrasonic test button.

·  Motorized vertical wire feed.

·  0.5 and 2 inch spool mounts.

·  Loop height control adjustment.

·  Swing away clamp assembly.

·  Independent Z lever for control of bonding tool.

·  Audio and visual bond sequence fault indicators.

·  Pull and tail lengths are adjustable by front panel controls.

·  LED readout for setting and monitoring work stage temperature.

·  Wire and ribbon bonding with only a bonding tool change.

·  Independent control of first and second bond parameters.

·  Infinite angle mounting for microscope.

·  Power: 120VAC (+ or - 10%) 50-60Hz @ 10 A (max.),240VAC configuration available with option 12.

·  Ultrasonic: standard 1 watt output (2 watt output available with option 44).

·  Time: 10 mSec - 400 mSec.

·  Force: 15 -150 grams standard.






 THERMOSONIC/ULTRASONIC BALL BONDERS

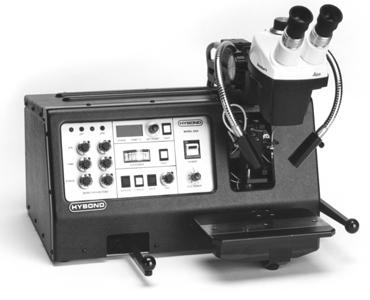

 MODEL 522A

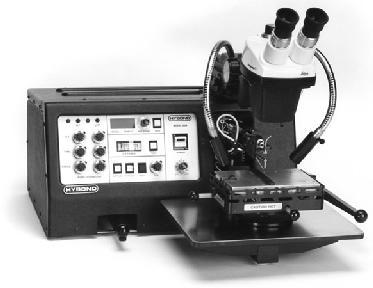

MODEL 522A-40



HYBOND Models 522A and 522A-40 ball bonders set the industry standard for ease of operation and maintenance.
Front panel operator controls include force, bond time, ultrasonic energy, tail length, EFO power and stage heat. The 4:1 X-Y manipulator stage movement and Z axis bond motion are conveniently located to reduce operator fatigue. Precision machined mechanical components with sealed ball bearings at major points are durable and trouble free. Modular electronics facilitate quick and cost effective maintenance.

HYBOND's exclusive Soft Touch TM force ramping system bonds effectively even to sensitive materials. Superior wire
control is provided by a motorized feed and clamping system which features front panel operator adjustment of tail length.



 MODEL 522A FEATURES

  • Horizontal reach of 3.5 inches.
  • Standard vertical access of 0.3 inch.
  • Deep vertical access capability of 0.59 inch with option 18.
  • 6 x 8.5 (15.2 x 21.6 cm) inch work plate supports various heated work stages.
  • Bench spc req: 20 x 20 in. (50.8 x 50.8 cm)
  • Unit weight: 55 lbs. (24.9 kg).

 MODEL 522A-40 FEATURES

  • Long horizontal reach of 6.5 inches.
  • Deep vertical access of 0.53 inch.
  • 10 x 12 inch work plate supports various heated work stages.
  • Comfortably fits 10 x 10 in. module or substrate
  • Bench spc. req: 20 x 25 in. (50.8 x 63.5 cm)
  • Unit weight: 70 lbs. (31.8 kg).



 GENERAL FEATURES



·  HYBOND Soft TouchTM energy system.

·  Front panel ultrasonic test button.

·  Motorized vertical wire feed.

·  1-2-2 stitch capabililty standard.

·  0.5 and 2 inch spool mounts.

·  Loop height control adjustment.

·  Electronic ball size control.

·  Independent Z lever for control of bonding tool.

·  LED readout for setting and monitoring work stage temperature.

·  Tail length is adjustable by a front panel control.

·  Audio and visual bond sequence fault indicators.

·  Independent control of first and second bond parameters.

·  Infinite angle mounting for microscope.

·  Swing away clamp assembly.

·  Ultrasonic: 1 watt output standard (2 watt output with option 44).

·  Time: 10 mSec - 400 mSec.

·  Force: 15 -150 grams std.(higher force available).






CUSTOM WORK STAGES ALSO AVAILABLE WORK STAGES!!

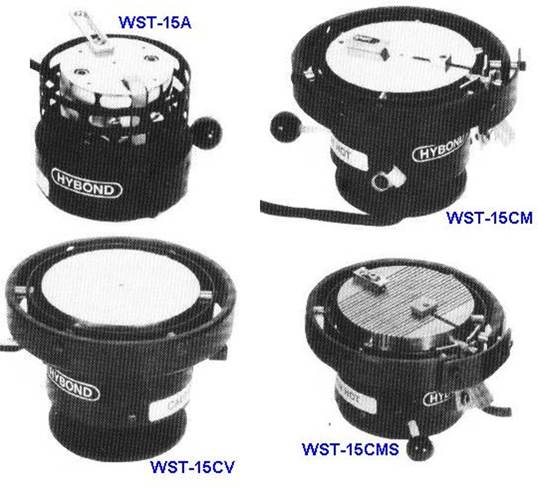

ST-15A
Adjustable Height Heated Work Stage with mechanical and vacuum clamping, surface dia.: 2.125 inches. Height adjustable from 2.4 to 3.0 inches. Also available: Model WST-15B with mechanical and vacuum clamping, surface dia.: 3.375 inches. Height adjustable from 2.5 to 3.0 inches.

WST-15CM
Rotating Heated Work Stage with a mechanical clamp, surface dia.: 3.188 inches. Height adjustable from 2.5 to 3.0 inches.

WST-15CV
Rotating Heated Work Stage with a vacuum clamp, surface dia.: 3.188 inches. Height adjustable from 2.5 to 3.0 inches.

WST-15CMS
Slotted Top on a Rotating Heated Work Stage with a mechanical clamp, surface dia.: 3.188 inches. Height adjustable from 2.5 to 3.0 inches. NOTE: Custom slotted tops are available on all of the HYBOND WST-15 Series Work Stages.

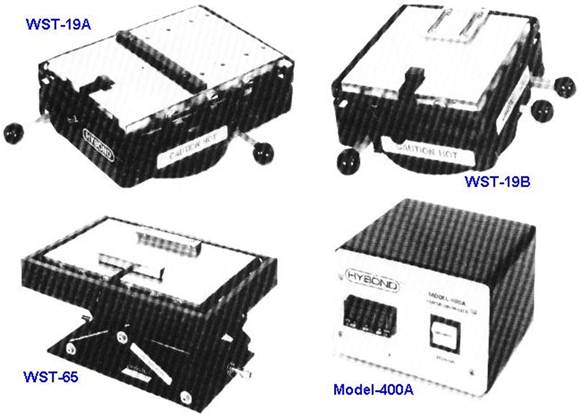

WST-19A
Adjustable Height Heated Work Stage with vacuum and mechanical clamping, surface dimensions: 4x6 inches. Height adjustable from 2.0 to 2.5 inches or 2.5 to 3.0 inches.

WST-19B
Adjustable Height Heated Work Stage with vacuum and mechanical clamping, surface dimensions: 4x4 inches. Height adjustable from 2.0 to 2.5 inches or 2.5 to 3.0 inches.

WST-65
Adjustable Height Heated Work Stage, surface dimensions: 10 x 6 inches (shown). Height adjustable from 2.75 to 5.75 inches, WST-70 Adjustable Height Heated Work Stage, surface dimensions: 10 x 8 inches.

MODEL-400A
External Temperature Controller for all HYBOND Work Stages, also compatible with other brands of wire bonders.
