SoftPlot Measurement Presentation Software - the smart way to put measurements into reports SoftPlot for Microwave Office Software - a customised version of our SoftPlot product for Microwave Office users Plottergeist - HPGL Plotter Emulator software |
|
| One
Software Package to handle all your Instrument Measurements and Test Results |
 |
 If you use test equipment then you will know
how difficult it is to get measurement data into PC
applications. So, your measurements end up as hardcopy
clipped into folders. If you need a plot in your report,
you'll have to scan it. If you want to use measurement
data in CAD software, or spreadsheets, you have to type

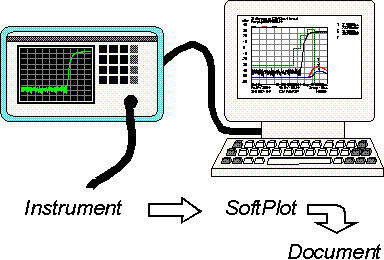

it in.Not any more. With SoftPlot Measurement Presentation software you get graphs and data files at the click of a button. Simply hook up your Network Analyzer, Spectrum Analyzer, Oscilloscope or Modulation Analyzer to your PC using a GPIB card or RS-232, and you have instant access to all the trace data you need. Presentation
Quality Graphics SoftPlot gives you sharp, scaleable, vector - based graphics to paste into your document or presentation. This is because trace data from the instrument is processed into the required display format. Choose from a wide range of graph types, including log and linear cartesian, polar and Smith charts. Apply markers and limit lines to clarify the information in your measurement. Enter measurement notes below the graph to document your test set-up, or to record the changes made in a family of traces. Full Support for Industry Standard CAD Software Bidirectional file exchange is supported for a wide range of circuit and system simulators, including Microwave Office ( TM AWR). Convert any manufacturers' data to match your simulator, as well as creating files from your own measurements. S-Parameter data can be read or written in SxP and FLP format. Read / write capability is also provided for comma-delimited (CSV) and tab-delimited (TXT and PRN) text files, allowing exchange with spreadsheets, word processors and mathematical tools such as MathCad. Store Information, not Graphics SoftPlot
exports graphics as a Windows Metafile or Bitmap
(*.WMF, *.BMP, *.JPG, *.TIF), but most important is the
ability to embed or link your measurements using OLE
(Object Linking and Embedding). This retains access to
the original measurement data as well as providing
graphics for your document. Long after the measurement
was made, you can double-click on the graph to activate
it. Then you can change the scaling, or move a marker, or
add limit lines, or merge it with a more recent
measurement for comparison. Unlike a hardcopy, the data
remains alive and accessible! |
|

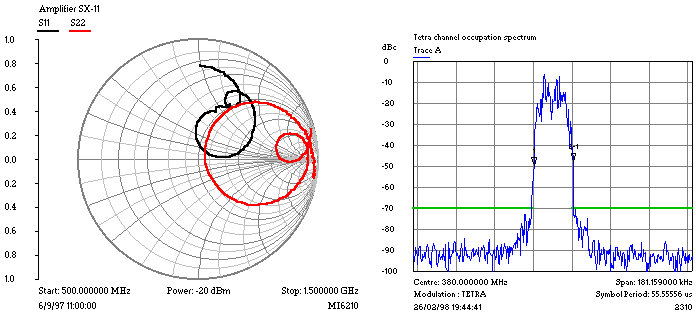

| From
your Network Analyzer... or your Spectrum Analyzer
|

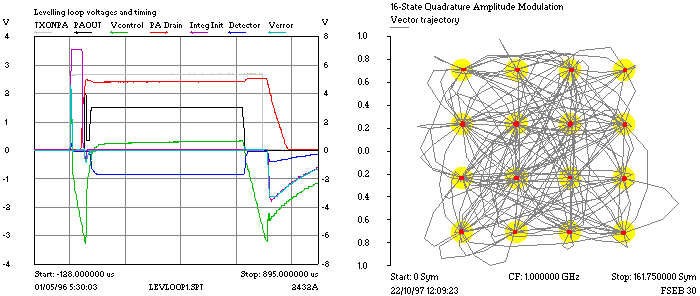

From
your Oscilloscope... or your Modulation Analyzer
|
Instruments Supported |
|
|
Network Analyzers
Agilent
E835XA
PNA Series Modulation Analyzers Advantest
R3264/3267/3273
+ Opt62 3GPP Others Agilent
EPM-P
Series Power Meter |
Spectrum Analyzers
Advantest
R3131/3132/3162,
R3261/3361, R3265/3271, Oscilloscopes Agilent / HP
548XXA
Infiniium Series |
| Hardware Requirements | |
|
Minimum system requirement IBM Pentium I 90MHz computer, 16MB RAM, 4MB hard disk space Microsoft Windows 95 / 98 / NT4 / 2000 |
GPIB card (Note: SoftPlot can also use RS-232 if the instrument supports it) National
Instruments, type PC-IIA, PC-AT, PC-PCMCIA, |
| Capability Summary | |
|
Supports Network Analyzers, Spectrum Analyzers, Modulation Analyzers, Oscilloscopes
Chart Types Graph
Data Formats Data Storage Markers Limit lines Scaling |
Numerical
Electrical delay, Smoothing, Magnitude and Phase offsets Trace
maths Data Editing Measurement Templates Integrated Interfaces: File Formats: (all bidirectional) |
